How do I reset my Hayward Goldline salt?

How do I reset my Hayward Goldline salt?

To reset, move the switch to ‘Off’ and then back to ‘Auto’. Wait for the relay to click (5 to 10 seconds). When the instant salt level is stable (and the negative sign still present), slide switch to ‘Super Chlorinate’ and back to ‘Auto’. It takes about 30 seconds for the unit to settle back on the default reading.

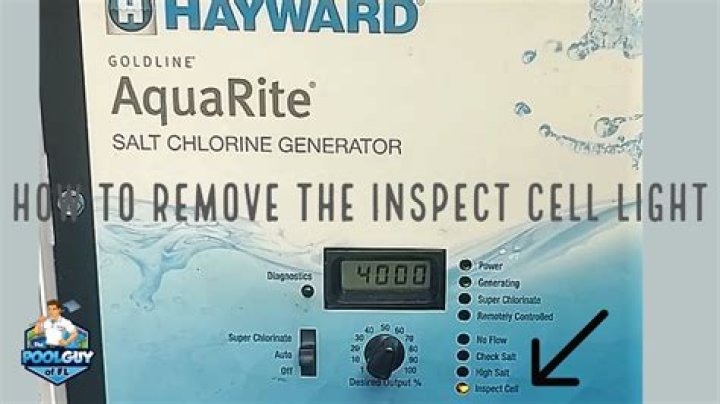

What does it mean to inspect cell on a saltwater pool?

If both the “check salt” and the “inspect cell” lights stay on, it most likely means that no chlorine is being produced at this time and your salt level fell below 2300 ppm. Both lights will also stay on if the controller is set to the wrong turbo cell type, or if the cell is unplugged.

How to check the active salt reading on ProLogic?

The active salt readings ~instant salt appears in the Diagnostic Menu. Press the Menu button repeatedly, until the Diagnostic Menu appears. Then press (>) one time. If all zeros or if Chlorinator Off Percentage Met, press ~+ key. IF, after a short countdown delay, the display does not revert to zeros, refer to step 3.

What does average salt reading on Goldline mean?

When attempting to recalibrate the average salt reading (default reading {2700-3400ppm}) the pump needs to be running. If the pump is not running, the system will show “NO FLOW”, if flashing this is just a warm up process and the unit is waiting for the water to begin moving through the cell to carry the chlorine out to the pool.

How to check your Goldline SWG panel salt level?

Visually inspect the cell by looking through it. It should look very clean with no calcium deposits on it. If it is dirty you will have to acid wash it. If not we ahve to look elsewhere. The next step you will have to take if you find yourself with a clean cell is finding your real salt level.

How can I recalibrate my Goldline pool panel?

You can do this by purchasing a salt meter or salt water test strips, or take the more practical approach of visiting a local pool store with a water sample. Any good pool store will do computerized water testing and salt checks. If your salt reading is different from that of the pool stores we will recalibrate your cell to the pool stores reading.

The active salt readings \~instant salt appears in the Diagnostic Menu. Press the Menu button repeatedly, until the Diagnostic Menu appears. Then press (>) one time. If all zeros or if Chlorinator Off Percentage Met, press \~+ key. IF, after a short countdown delay, the display does not revert to zeros, refer to step 3.

What should instant salt reading be on Hayward Omnilogic?

I have Hayward omnilogic which doesn’t have low salt light, However in diagnostics the instant salt reading is 0. My guess is the actual number is prob around 2000ppm based on last year’s number and what I drained and refilled. Will get it checked by the pool store too but having a reading of 0 concerns me.

What causes instant salt reading to be zero?

There are two cases where the instant salt reading will be zero. The first is if the cell is not currently active it will show an instant salt reading of zero. You appear to have done the correct things to check for that, turning up to 100% and insuring that the water is above 60 degrees should allow the cell to always be on.

What do you need to know about Prologic pool?

ProLogic: Main PCB Layout A IRemote DSP comm (RS485 – 10VDC) B Temp sensor terminal block (5VDC) C Heater 1&2 terminal block (dry contacts) D Valves 1-4 & 4Amp fuse ( 24VAC) E Cell Plug for chlorination F High Voltage Relays (top – Filter, Lights, AUX1, AUX2; bottom (AUX 3-6).
