What are the parts of a coaxial cable?

What are the parts of a coaxial cable?

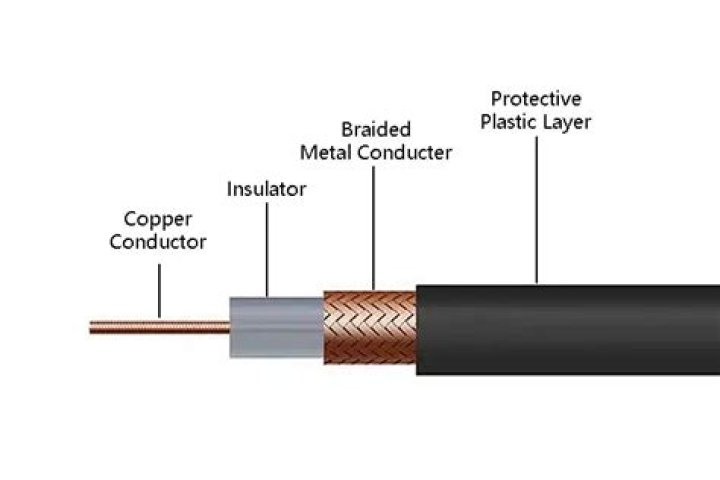

Coaxial cables are mainly built up of these four different layers:

• A centre conductor which is usually a copper wire, which data and video travels through.
• Surrounding the copper wire is a dielectric plastic insulator.
• A braided mesh made from copper then helps to shield the cable from electromagnetic interference (EMI)

What type of coaxial cable have in aircraft?

Improvements in design and reliability have made it a frequent feature for aircraft data transmission applications. In the realm of aerospace, a common coaxial specification is the MIL-DTL-17 coaxial cable standard.

How many wires are in coaxial cable?

two conductors
A coaxial cable consists of two conductors laid concentrically along the same axis. One conducting wire is surrounded by a dielectric insulator, which is in turn surrounded by the other, outer conductor, producing an electrically shielded transmission circuit.

What are the four types of coaxial cable?

The common types of coaxial cable include:

• Hard line coaxial cable.
• Flexible coaxial cable.
• Semi-rigid coaxial cable.
• Formable coaxial cable.
• Rigid coaxial cable.
• Twin axial cable.
• Triaxial cable.

  How do we use coaxial cable in aircraft?

  A special cable is used to connect the aircraft radio to the antenna. This circular coaxial (coax) cable has special characteristics for the frequencies used and must match the radio and antenna (electrically and mechanically).

  Why is a balun used in an antenna?

  Radio and television To avoid feed line radiation, baluns are typically used as a form of common mode choke attached at the antenna feed point to prevent the coaxial cable from acting as an antenna and radiating power.

  What does 75 ohm coaxial cable mean?

  The 75 Ohm impedance is a world-wide accepted value for all kinds of coaxial high frequency signal connections. Impedance is another word for the value of electrical resistance for alternating current: An alternating voltage applied at one cable end results into an alternating current flowing into the cable.

  What type of coax cable is used for Internet?

  RG6 cable
  Summary. RG6 cable is heavier gauge and has insulation and shielding tuned for high-bandwidth, high-frequency applications such as Internet, Cable TV, and Satellite TV signals. If you aren’t sure which cable to get, then RG6 cable is your best bet.

  Which is the best way to roll out coaxial cable?

  Roll Out Coaxial Cable If you lay a spool of cable on its side and start pulling cable off it, the cable will twist as it unravels, and a twisted cable kinks when you pull on it. It’s best to slide a section of conduit through the center of the spool and rest it on a ladder. Secure the conduit with a scrap piece of wire.

  What is coaxial cable choke at Antenna head?

  If the antenna is a multiband setup working through 80-10m, then such a coiled coaxial coil choke contraption is almost an eye-candy on most bands. Let us see why? What is the basic objective of a coaxial cable choke at antenna head?

  How do you find the right coax cable?

  Touch each cable pin at a time, and when a sound is emitted, it means you have found the right cable. If the other end of the coax cable is connected to the satellite dish or antenna at your roof, then you can use a multimeter & aluminum coil to trace the right ends of a specific coax cable.

  Can a coiled coaxial cable choke reduce RF noise?

  However, as far as the noise reduction is concerned, the coiled coaxial cable choke perhaps did very little… Yes, it did reduce the noise a bit but certainly not enough to be of enough real consequence. It certainly did not reduce the noise to the level that was potentially possible.
